产品简介  Product Introduction

        压缩机在运转中,压缩机排气出口冷媒通常含有大量的 冷冻机油，为了保证压缩机不致流失大量冷冻机油，及防止冷冻机油随着冷媒流向系统中影响冷凝器散 发热功能，及蒸发器的制冷效果，所以在压缩机和冷凝器之间必须装一台油分离器，使冷冻机油和冷媒 分离，让油自动回入压缩机曲轴箱内。回油装置是以油分离器内底部的浮球阀操作，再由高低压差原理 一起完成。保证压缩机不缺油，以达到最好的制冷效果。

        When compressor is in operation, the outlet of compressor always has lots of refrigerant oil. We need to install an oil separator between compressor and condenser to separate the refrigerant oil and refrigerants in order to prevent the compressor not lose too much refrigerant oil and prevent the refrigerant oil flow to system with refrigerants to interfere the condenser’s heat function and evaporator cooling function. Then the oil will flow back to the compressor crankcase. Oil- return device operates on the ball valve moving on the bottom of oil separator and the high-low voltage theory. The oil separator can ensure the sufficiency of oil in compressor and let the compressor reach its best cooling performance.

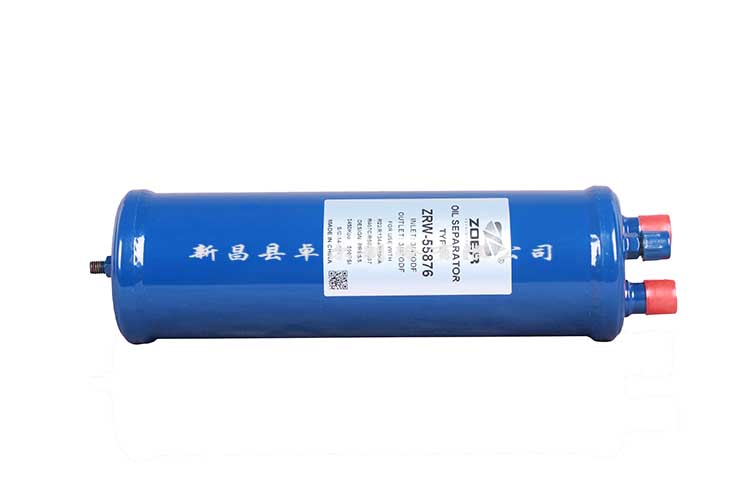

产品展示  Product Display





产品特点  Product Fedture

●可靠的针形阀关闭系统

Reliable needle valve closing system

●带有钢制回油系统的密封结构(1/ 4"或3/ 8"螺口)

Steel oil return system with hermetic welded construction (1/4''or3/8''SAE connectors)

●减小系统高压端的振动和噪声】

 Can reduce the vibration and noise of system high pressure end



产品属性  Product Attribute

产品说明 Specifications
● 储油量：55824-559011为600ml，56909-569417为800ml Oil volume 55824-559011:600ml, 56909-569417:800ml ●在安装油分离器之前，需先对油分离器进行初始充油，从而保证系统正常运行 We need to pre-charge the oil before installing oil separator. To ensure the normal operation system
命名方式	例如 ZRW-55876
	Nomenclature:For Example ZRW-55876
	ZR	W	5587	6
	Series	Welded	Model Number	Connection Size （in3/4" ）
尺寸数据	Dimensional Data
型号 Description	接管尺寸(in)Connection Size (ODF)	外形尺寸（mm）Dimensions		对应型号Corresponding Description
		A	B
ZRW-55876	3/4	102	458	ZRW5203
