产品简介  Product Introduction


         ZRC系列块状干燥过滤器采用高品质的压缩小颗粒球形干燥剂烧结成的模块，与高密度网布结合，达到干燥过滤的作用，能有效过滤系统中残留的水份和杂物。

         ZRC series solid core liquid line filter drier using a high quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth ,to dry and the role of filter, that can effectively filter system residues of water and debris.

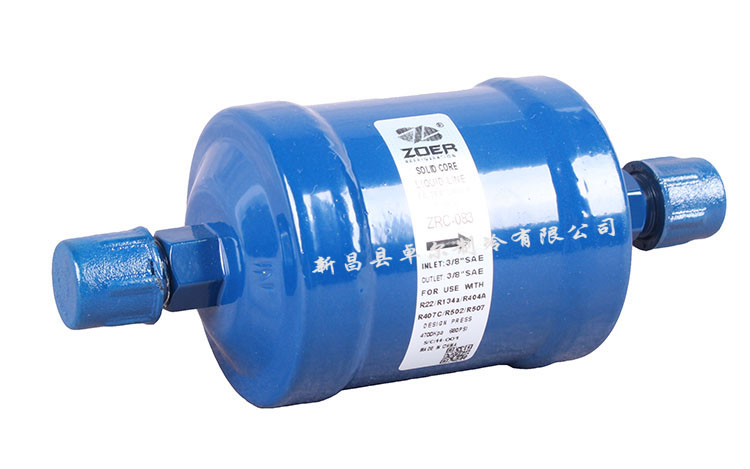

产品展示  Product Display





产品特点  Product Fedture

●高溶解水份和去除酸的能力强

 High moisture dissolution and acid removal ability

●干燥和过滤相结合

Drying and filtering effect of combining

●高强度小颗粒球形干燥剂烧结成的模块，使得运行时无震动和摩擦，减少干燥剂的磨损

Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction , reduce wear of the desiccant

●接头形式有焊接式或螺纹口式

ODF and SAE connections are available



产品属性  Product Attribute

产品说明 Specifications
高溶解水分和去除酸的能力强 50um的过滤网可在最小压力降下保持高效过滤 接头形式有焊接口和螺纹口 防腐漆保证500小时盐雾喷淋试验 最小破坏压力：17.5Mpa
命名方式	例如：ZRC-083
	Nomenclature：For Example ZRC-083
	ZRC		08	3
	Molecular Series		Unit Size (in cu. in. )	Connection Size（in3/8" ）	S=ODF Connections(omit for SAE)
尺寸数据	Dimensional Data
型号 Description	接管尺寸 Connection Size		外形尺寸（mm）Dimensions
	焊接口 ODF	螺纹口 SAE	A	B	C
ZRC-083		3/8	155	98	63.5
